3DX-Ray
3DX-RAY Ltd is a global market and technology leader in line-scan x-ray imaging systems for security and industrial inspection.
Our security systems combine high image quality with ease of use and competitive pricing. Portable, mobile and fixed systems are offered to meet a wide range of security x-ray inspection needs.
Our industrial systems help to ensure the integrity, quality and safety of products. We offer stand-alone units for batch and pilot plant processing and laboratory testing, and in-line systems which can be integrated into the production line to offer 100% inspection capability at full production line speeds.
Whichever system you choose, you can be sure of the quality. Our quality management system has been independently certified as meeting the requirements of ISO9001:2015.
Established in 1996, 3DX-RAY Ltd has a track record of innovation and success and has supplied systems worldwide directly and through partners, agents and distributors.
OUR PRODUCTS
PORTABLE SYSTEMS

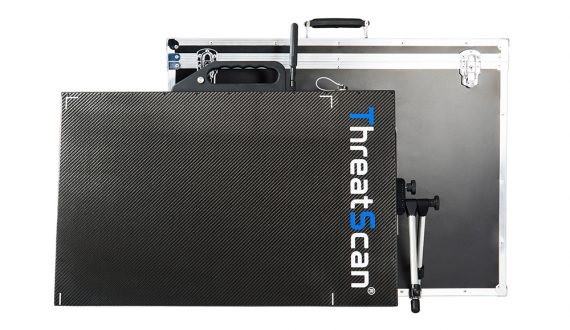

ThreatScan®-LS1
Despite being remarkably lightweight, incredibly thin, portable and battery powered 3DX-RAY ’s ThreatScan®-LS1 is a powerful large format x-ray scanning system. The large 600mm x 460mm imaging area of the ThreatScan®-LS1 enables typical bags and packages to be scanned in one scan. Scanning to within 3mm of ground level no part of a suspicious object is left uncovered. This powerful system penetrates up to 34mm steel at 120kV, producing high quality, sub-millimetre resolution images.
[Download Data Sheet]
[Threat Inspection Software]
ThreatScan®-LS3
ThreatScan®-LS3 is a compact yet powerful x-ray scanning system that can penetrate 34mm steel at 120kV as standard. The 305mm x 256mm imaging area enables typical bags and packages to be scanned in one scan, and scans almost to ground level. The complete system fits securely into a back pack.
Designed for rapid deployment and ease of use, ThreatScan® systems operate with the intuitive and user-friendly ThreatSpect software to produce high quality, sub-millimetre resolution images.
The ThreatScan®-LS3 is designed so that the operative can achieve accurate high-quality images quickly and efficiently.
[Download Data Sheet]
[Threat Inspection Software]
FlatScan2-15
FlatScan2-15 offers real-time digital x-ray screening with superb image quality and image processing tools. The result: the ability to make decisions quickly and accurately based on exceptionally well-defined images.
Designed for rapid deployment and ease of use, FlatScan systems have been ergonomically and functionally designed to make life easier for the operative.
High quality images and advanced, user-friendly ThreatSpect software mean that images can be acquired and interpreted both quickly and accurately.
[Download Data Sheet]
[Threat Inspection Software]
FlatScan Lite
Our entry level product combines our K-120 generator with the long established FlatScan2-15 panel. Compared with traditional fluoroscopic or CCD based portable x-ray equipment, the FlatScan2-15 experience offers superior image quality and ease of use. All for the same investment as the old CCD systems. The result: incredible cost-to-performance benefits.
Designed for rapid deployment and easy operation, FlatScan-Lite offers real-time digital x-ray screening with superb image quality and image processing tools. FlatScan systems are ergonomically designed to meet the needs of field operatives. The high-quality images and user-friendly ThreatSpect software enable the operator to acquire and interpret the x-ray image quickly and accurately.
[Download Data Sheet]
[Threat Inspection Software]
MAIL SCREENING
MailScan2 Cabinet Systems
MailScan cabinet x-ray systems are used for screening mail, parcels and small packages for potentially harmful items and contraband. A large inspection chamber and imaging area is packed into a remarkably small footprint. This makes 3DX-RAY’s MailScan solutions ideal for locations where space is at a premium, such as mailrooms or office reception areas.
Unrivalled image resolution and industry-leading image processing software, together with powder detection, allow the operator to analyse images quickly and accurately. Items such as weapons, improvised explosive devices, razor blades, biochemical attack threats, powders and drugs are easily detected.
MailScan systems are simple to operate and are supplied complete with an on-screen training module.
AXIS Conveyor Systems
A 3DX-RAY AXIS system is ideal for scanning larger quantities of mail and bulkier items such as hand baggage in non-aviation environments. AXIS provides superb image quality, materials discrimination, powerful image enhancement and processing functions for rapid accurate interpretation of images.
Each system is a fully integrated, stand-alone conveyor x-ray inspection solution, available as either a conventional 2D or advanced 3D system. Ideal for scanning large quantities of mail or packages. Image manipulation technology enables enhanced contrast for edges of objects or highlighting objects with a specific density or atomic classification.
[Download AXIS-64 Data Sheet]
[Download AXIS-3D Data Sheet]
CONVEYOR SYSTEMS
AXIS-64™ 2D system
The AXIS-64™ 2D system offers a competitively priced solution for screening mail and packages. It offers "best in class” image quality and a wide range of image processing functions and dual energy materials discrimination.
Ideal for scanning large quantities of mail or packages. Image manipulation technology enables enhanced contrast for edges of objects or highlighting objects with a specific density or atomic classification.
AXIS-3D®
AXIS-3D® uses advanced technology to provide real-time 3D (stereoscopic) x-ray images. The operator is able to see whether a wire passes behind, in front of, or into a substance or container.
AXIS-3D®’s robust, ergonomically designed keyboard and intuitive software have been designed for ease of use. Combined with enhanced 3D visualisation and simple-to-use image processing tools, the operator is able to make fast and accurate decisions. This leads to speedier throughput and reduces the incidence of false alarms or missed threats.
Ideal for scanning large quantities of mail or packages. Image manipulation technology enables enhanced contrast for edges of objects or highlighting objects with a specific density or atomic classification. Images are made easier to interpret by adding perceived depth.
VEHICLE SCREENING
3DX-RAY SVXi vehicle scanner system
Thorough physical searches of vehicles can take anything up to 8 hours. It can take just as long to rebuild the vehicle. The 3DX-RAY SVXi vehicle scanner system enables security personnel to thoroughly inspect vehicles – even sealed units – in minutes.
Rapidly deployed and suitable for vehicles up to the size of a small van, SVXi produces high quality images with sub-millimetre resolution in a single pass. The entire operation can be controlled from a remote laptop. The easy-to-use, sophisticated software enables images to be zoomed, panned and processed to enable rapid assessment of any potential risk. Deep focus and the ability to highlight specific materials also aids assessment speeds.
The SVXi is mobile and can be mounted on anything from multi-terrain vehicles to low-cost motorised trailers. SVXi can be deployed quickly at key locations to combat smuggling and terrorism or it can be used for spot checks across an entire region. A fixed unit configuration is also available.
