FEC HELIPORTS WORLDWIDE LTD

Heliports is a division of Federal Equipment Company of Cincinnati, Ohio [FEC]. Founded in 1982 FEC began as a small replacement parts supplier of material handling equipment used by the US Army and Navy, US Coastguard and shipyards throughout the world. The company has grown to become a complete engineering and manufacturing company, recently winning a number of multi-million dollar contracts with Northrop Grumman to build and install FEC-designed weapons elevators for the next generation of aircraft carriers for the US Navy.

FEC Heliports Worldwide Limited is a company registered in England and is FEC Heliports international marketing partner, formed in 2007 to market FEC Heliports products and services internationally. Since 2007 the companies have successfully completed the design and construction of several major trauma centre hospital rooftop helipads in Europe, and hospital and commercial rooftop helipads in the United Arab Emirates. The companies also jointly undertake the design and construction of offshore oil and gas installation helideck projects for international clients in Europe the Middle and Far East and Australasia.

Our products include:

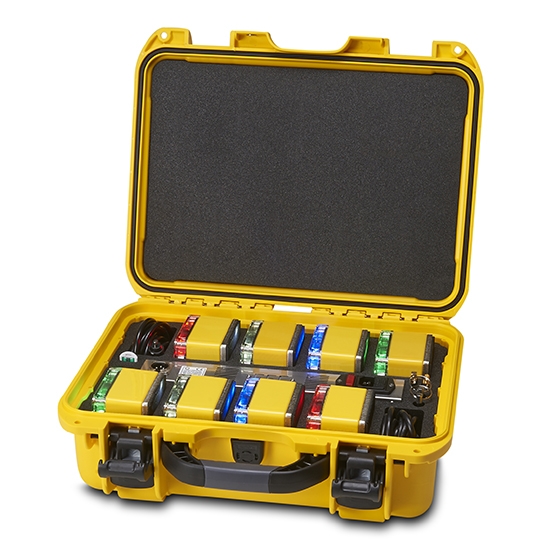

FEC HEMS-Star® Portable Helipad Lighting System

HEMS-Star® rechargeable battery powered LED helipad lighting system.  Designed for rapid deployment to provide safe and effective marking at designated or ad-hoc helicopter landing areas.

HEMS-Star® is the upgraded version of the popular HeliLight System which has been operational in the field for two years and used at multiple locations by HEMS operators including:

£6950.00

· Contact us

Operational Capabilities

· HEMS-Star® system extends operating hours.

· Portable and lightweight – a full case weighs only 10.6 Kg.

· Versatile - Red, blue, green, white visible LEDs and infrared to support pilots wearing Night Vision Goggles (NVGs).

· HEMS-Star® is rechargeable in its case via mains at 100-240V AC, vehicles at 13.5-28VDC, solar or wind power.  Mains PSU is capable of charging 8 lights from fully exhausted to fully charged in 3.5 hours.

· HEMS-Star® is IP65 rated and fitted with rubber soled stainless steel base for stability. Successfully tested at the Sikorsky Development Flight Center in Florida for stability under the full rotor wash of a Chinook.

· HEMS-Star® achieved FCC certification for operation in the USA and CE certification for the European Union.

Air to Ground Control

HEMS-Star® are pilot activation enabled and fitted with an 868 MHz (915 MHz in the USA) UHF transceiver.

  • Each light or set of lights can be programmed, interrogated and controlled by wireless commands.
  • HEMS-Star® via FEC Remote Lighting controller can be switched on from the aircraft operational via VHF at a line of sight at ranges in excess of 10km.
  • HEMS-Star® can be controlled remotely via a PC/Tablet with the USB-UHF transceiver.

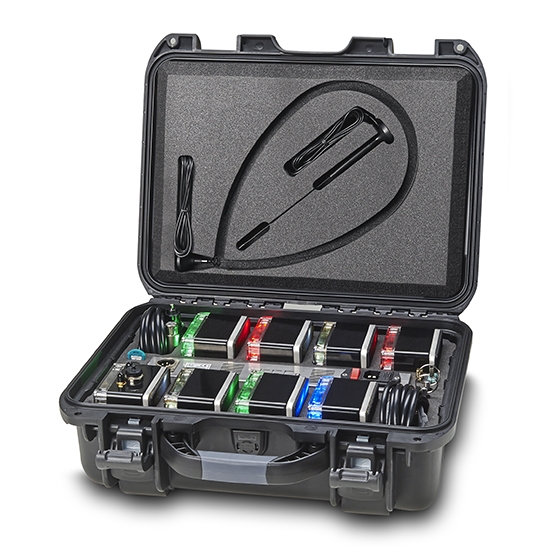

FEC Heliports MIL-Star®: Portable Tactical Airfield Lighting System with NVG compatible IR

MIL-Star® rechargeable battery powered LED helipad lighting system is designed for fast deployment and use by advancing military forces in temporary and emergency situations.

Provides safe and effective marking at designated or ad-hoc helicopter landing zones.

Tried and Trusted

MIL-Star® is the upgraded military version of the popular HeliLight System.  Our portable lighting systems are used by:

£8950.00

· Contact us

Operational Capabilities

  • Application - Covert and FLIR operations.  Effective marking of helicopter landing zones that can be identified at night from distances up to 10 Miles (16km).
  • Each MIL-Star® has NVG compatible red, blue, green, white visible LED’s and infra-red and is programmable to show steady -on, flash warning, location beacon or Morse Code with the option of automatic sunset switching.
  • MIL-Star® is rechargeable in its case via mains at 100-240V AC, wind or solar power vehicles at 13.5-28VDC.  Mains PSU is capable of charging 8 lights from fully exhausted to fully charged in 3.5 hours.
  • MIL-Star® is fitted with a rubber soled stainless steel base and is IP65 rated. Successfully tested for stability under the full rotor wash of a Chinook.
  • MIL-Star® has FCC certification for operation in the US and CE certification for the European Union.

Remote Pilot Control

MIL-Star® are pilot activation enabled and fitted with an 868 MHz (915 MHz in the USA) UHF transceiver.

  • Each light or set of lights can be programmed, interrogated and controlled by wireless commands.
  • MIL-Star® can be switched on from the aircraft using an in case Mobile Lighting Controller transceiver operational via VHF at line of sight ranges in excess of 10km.
  • MIL-Star® can be operated remotely via a PC/Tablet with the USB-UHF transceiver.

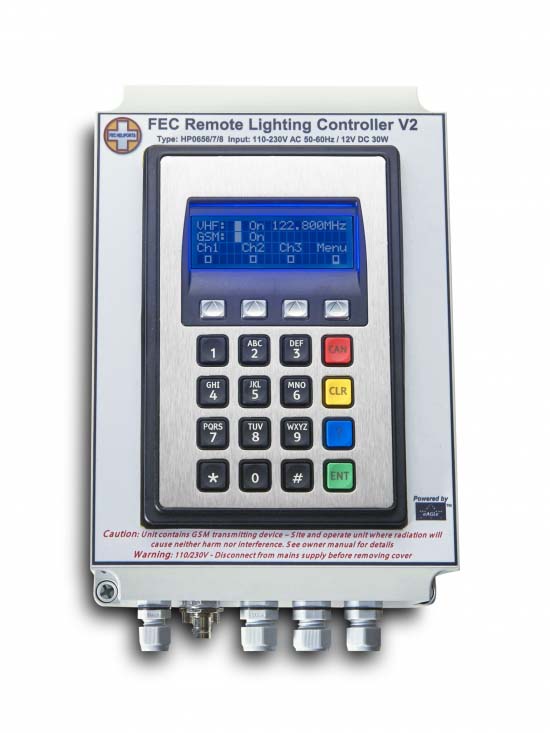

FEC Remote Lighting Controller VHF/GSM/UHF

The effective operator or pilot control of Helipad Lighting is critical to the safe operation of an installation.  Radio Pilot Controlled Lighting solutions enabled via VHF have a long track record of proven success and reliability with VHF as the technology of choice.

£3795.00

Product Code

HP0656/U

· Contact us

FEC Programmable LED Location & Identification Beacon

A Heliport Beacon is required where long range visual guidance is needed and not provided by any other means, or where the location of the helipad is difficult to identify due to surrounding lights.

FEC Programmable LED Location & Identification Beacon provides visual clues as flashes / Morse Code that can easily be identified and simply followed even when concentrating on flying an advanced aircraft.

£2250.00

HP0683P



· Contact us


Other Equipment

Lighting

Approach Lights

Beacon Lights

Flood Lights

Green Perimeter Lights

Yellow Perimeter Lights

NVG Perimeter Lights

Obstruction Lights

Taxi Lights

Windsocks

Approach Lights

HAPI-PLASI Approach Systems ICAO

Heliport Equipment

Firefighting

Helicopter Crash Rescue Lockers

Operational & Handling Equipment

Safety Equipment

Weather Station

For more information:

· Contact us
